Products: Amplifiers: The Model 770

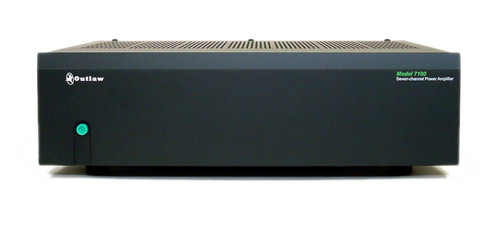

A moderate price never had such a reward. The Model 7100 delivers 7 channels at 100 Watts each, allowing playback of the most recent sound formats without breaking the bank. The Model 7100 is based on the same system architecture and topology as our Model 755 and 770 amplifiers. The power stages are virtually the same and the sound is everything you have come to expect from Outlaw. The Model 7100 is built in the USA to our design and specifications. $899

About/Gallery

Manual

Specifications

Power Output: 7 x 100 watts @ 8 ohms, 20 - 20kHz, 0.05% THD, All Channels Driven 7 x 165 watts @ 4 ohms, 20 - 20kHz, 0.05% THD, All Channels Driven

Signal to Noise: 119dB "A" weighted

Frequency Response: 20Hz. -20kHz. +/- 0.1 dB at rated output

Total Harmonic Distortion: < 0.05% at rated output, all frequencies, 0.01% at 1 kHz.

Intermodulation Distortion: < 0.05% at rated output.

Power Bandwidth: 5Hz - >100 kHz +0/-3 dB

Damping Factor: > 400 from 10 Hz to 400 Hz

Crosstalk: > -90 dB from 20 Hz to 20Khz

Gain: Voltage gain of 28

Slew Rate: 50v/Microsecond

Input Impedance: Nominal 50k ohms

Input Sensitivity: 1.00 Volts for Full Rated Output

Remote Trigger Voltage: 3 - 32 Volts DC at 5 milliamperes or greater

Dimensions: (HxWxD): 5" with feet x 17.2" x 16.2"

Weight: 51 lbs

Power Requirements: 115VAC, +/- 3%, 50Hz - 60 Hz. 1200 watts, maximum
